Toyota Landcruiser 100/105 Series Rounded Guard Entry Snorkel & Clear Top Airbox Package
GST included. Shipping calculated at checkout.
Each snorkel is handcrafted to order. Allow an estimated lead time of 5+ weeks before it's ready to ship, collect or fit. Lead times can change with build queues, public holidays and shutdown periods.
- Workshop backedSquad Customs Garage, Emu Plains NSW
- Expert helpTalk fitment before you buy
- Secure checkoutShopify encrypted payments
- Fitment availableEnquire for pricing and booking
Product details

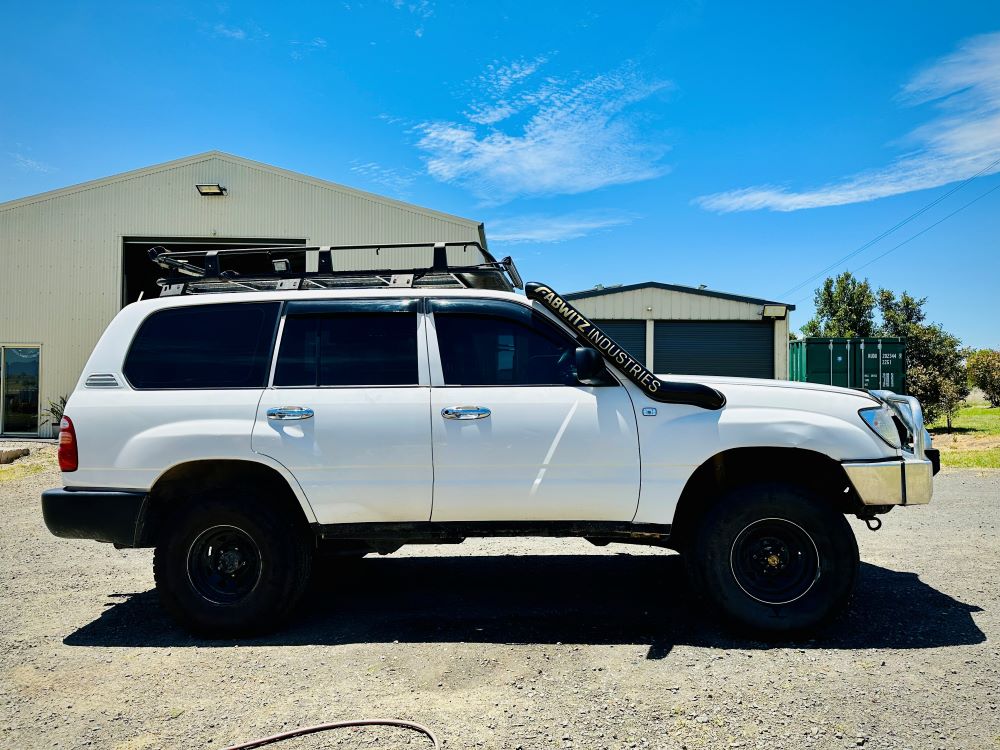

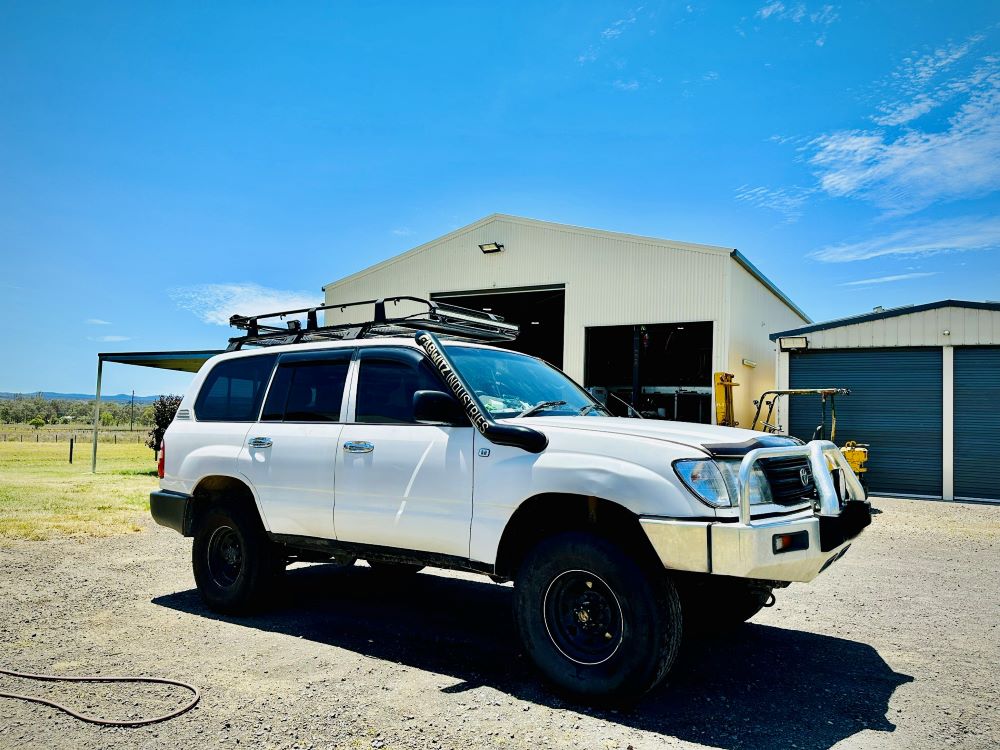

Upgrade your Toyota Landcruiser 100/105 Series (1HD-FTE and 1FZ-FE engines) with a Snorkel + Clear Top Airbox Package.
SNORKEL:
- Size: 4"

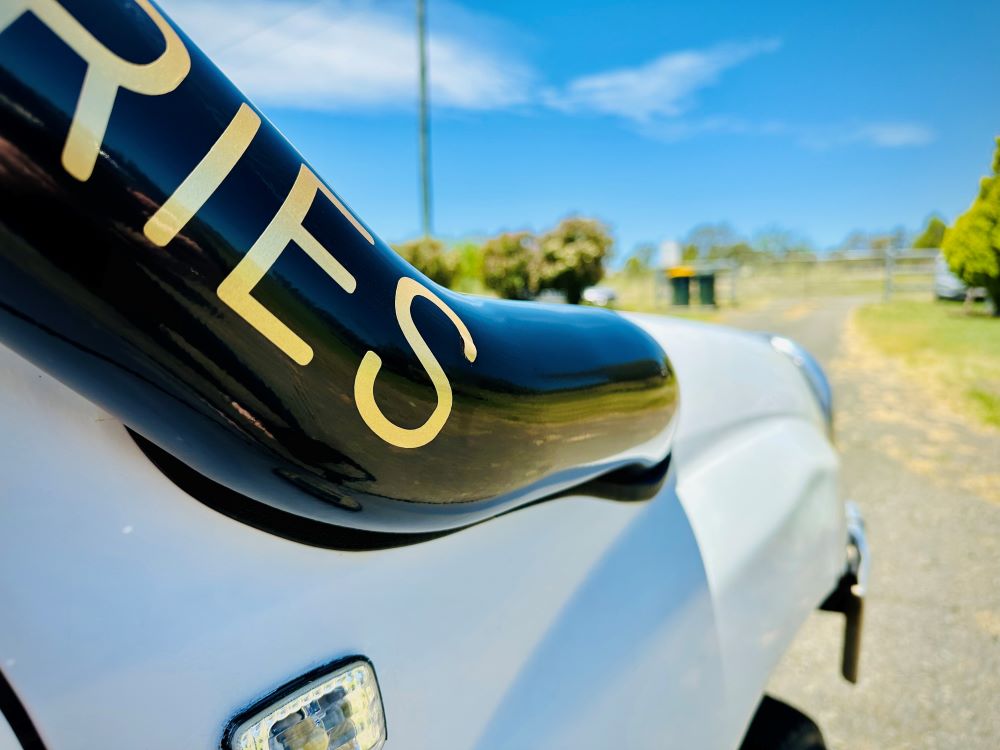

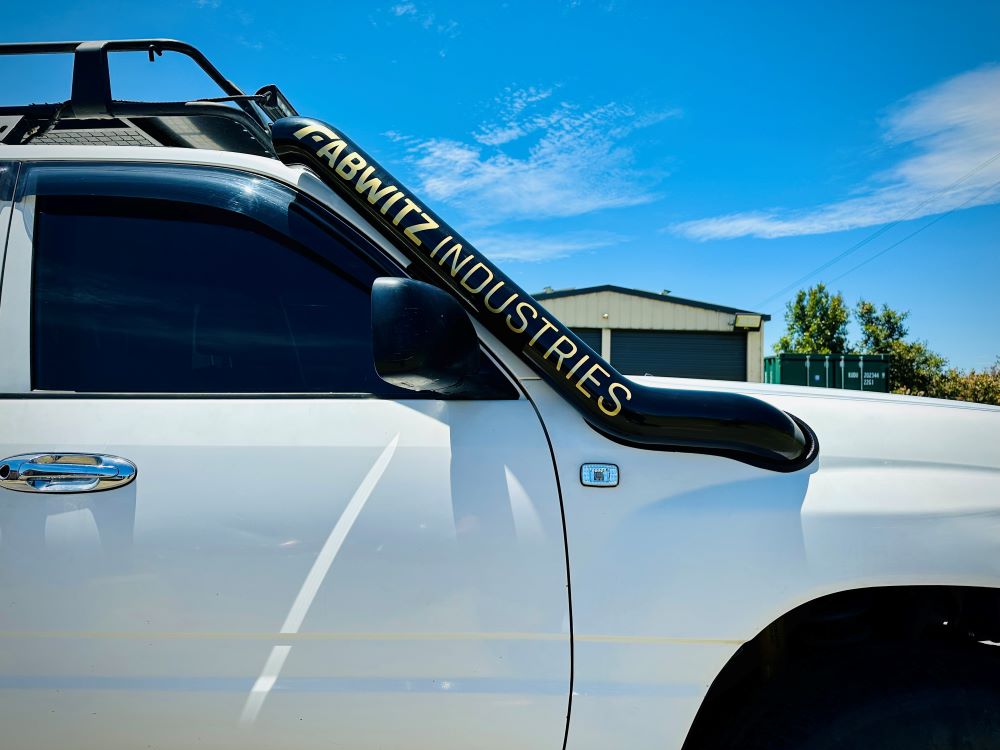

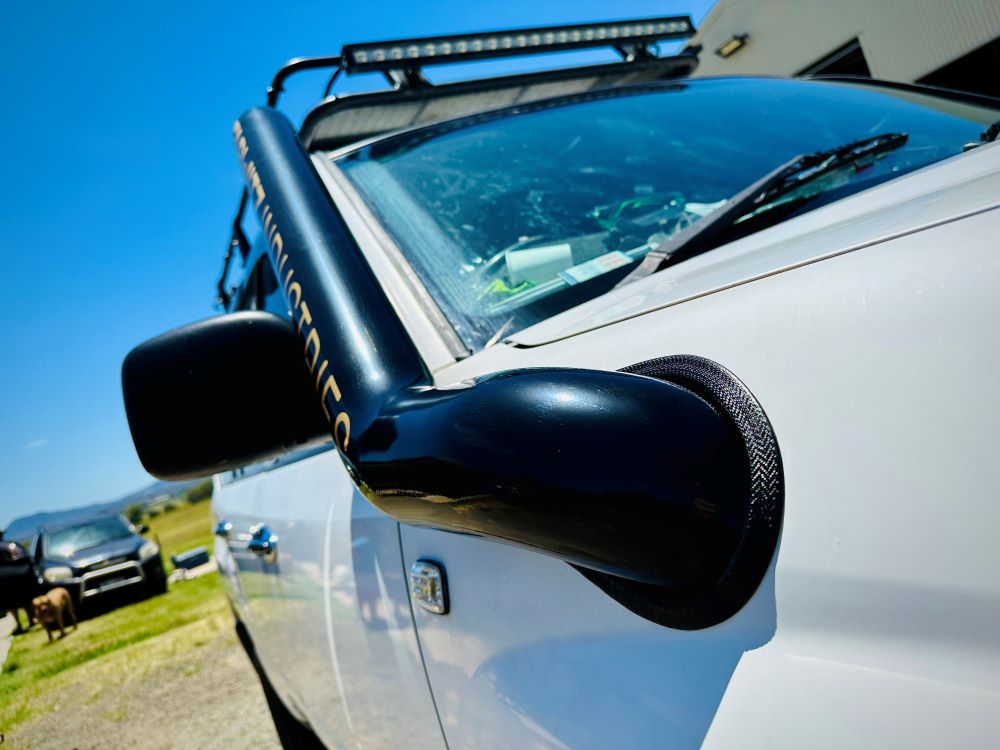

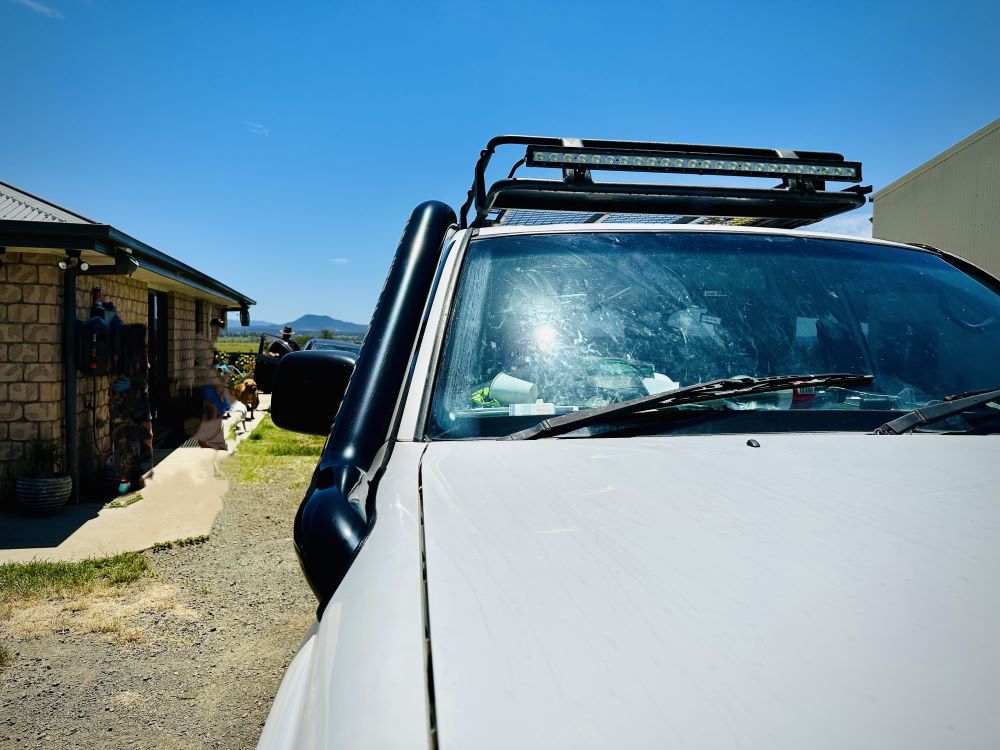

- Style: Rounded Guard Entry
- Weld Type: Seamless
- Finish: Powder Coated (Satin or Gloss Black only)
- Designed to suit a vehicle with a blank guard (no holes)

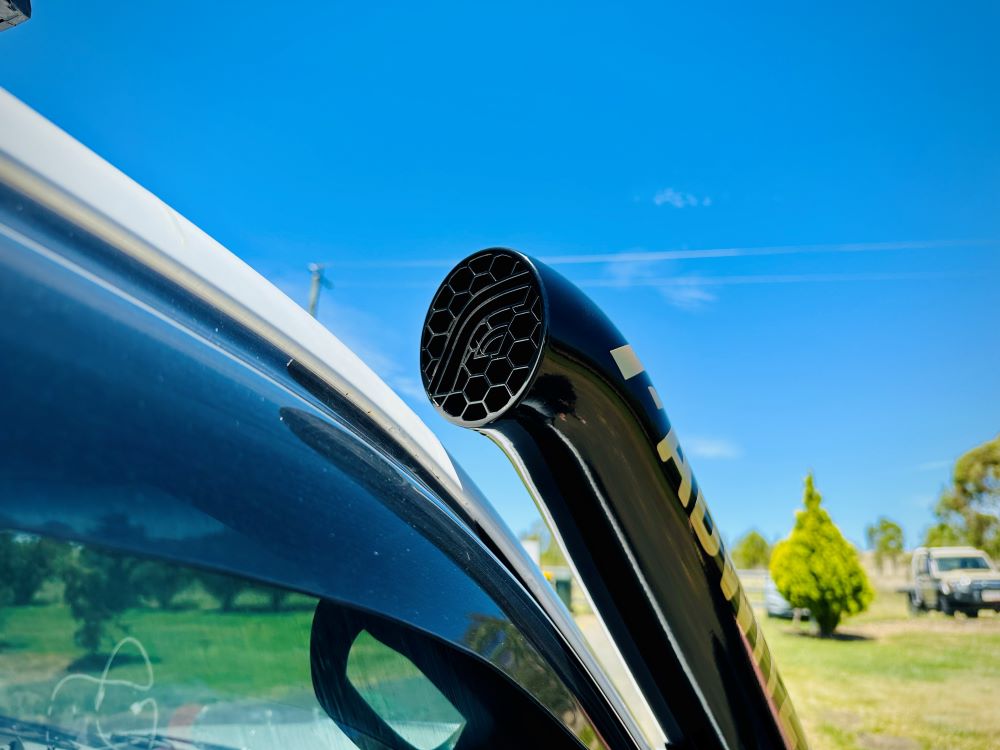

- End Cap Shape: Round End OR Low Cut End
End Cap Design: Our snorkel & airbox package is supplied with our standard logo as the end cap design for the snorkel only.
Please Note: this snorkel is compatible with both the 100 & 105 Series. If you are unsure, or have an existing snorkel, please contact us with a photo of the car - snorkel side.
**Trimming is required within the guard - please contact us prior to purchase for further information**
-------------------------------------------------------
Airbox/Intake Finish: Texture Black only
Dress Plate: Brushed stainless only (no powder coating)
AIRBOX:
- Airbox is of Alloy Construction with 4" Inlet & 4" Outlet
- Utilizes factory mounting points
- CNC acrylic lid with brushed stainless dress plate & our logo
- CNC Rubber Gasket
- Includes a 4x9" Pod UNI-Filter (only) (colour - stock dependent)
- Built in Duck Valve drain
- Utilizes all factory mounting hardware
- Designed to suit the 1HD-FTE and the 1FZ-FE engines
- Intake supplied to suit either 1HD-FT / 1HDT / 1HZ Turbo (ensure you select the correct intake)
***We are yet to test fit the airbox in any other engine option for the 100/105 Series.
Please Note: Airbox is designed to only suit the supplied 4x9" UNI-Filter: TCP2 100/200 (100mm Intake, 115-140mm OD, 200mm Long). Rendered images of the airbox are used as a representation of the only. The overall product may vary slightly in general appearance and surface finish.
What's included
- Snorkel/s
- Template
- Silicone joiner/s to suit factory airbox
- Hose clamps
- Inner guard piece (selected vehicles)
- Mounting hardware for bracket
- Pinch weld
Fitment & installation
Want it fitted? The Squad Customs Garage workshop in Emu Plains can quote fitment for your vehicle. Contact us before you buy to confirm pricing, availability and that the part suits your setup.
Shipping & returns
Shipping is calculated at checkout. Made-to-order items are built specifically for your order and are not eligible for change-of-mind returns, in line with ACCC guidance. Your rights under Australian Consumer Law are not affected. See our refund policy.
