ENTRY LEVEL Nissan Patrol Y61 GU ZD30 CRD (2004-2015) Common Rail - Airbox/Intake Kit
GST included. Shipping calculated at checkout.
- Workshop backedSquad Customs Garage, Emu Plains NSW
- Expert helpTalk fitment before you buy
- Secure checkoutShopify encrypted payments
- Fitment availableEnquire for pricing and booking
Product details

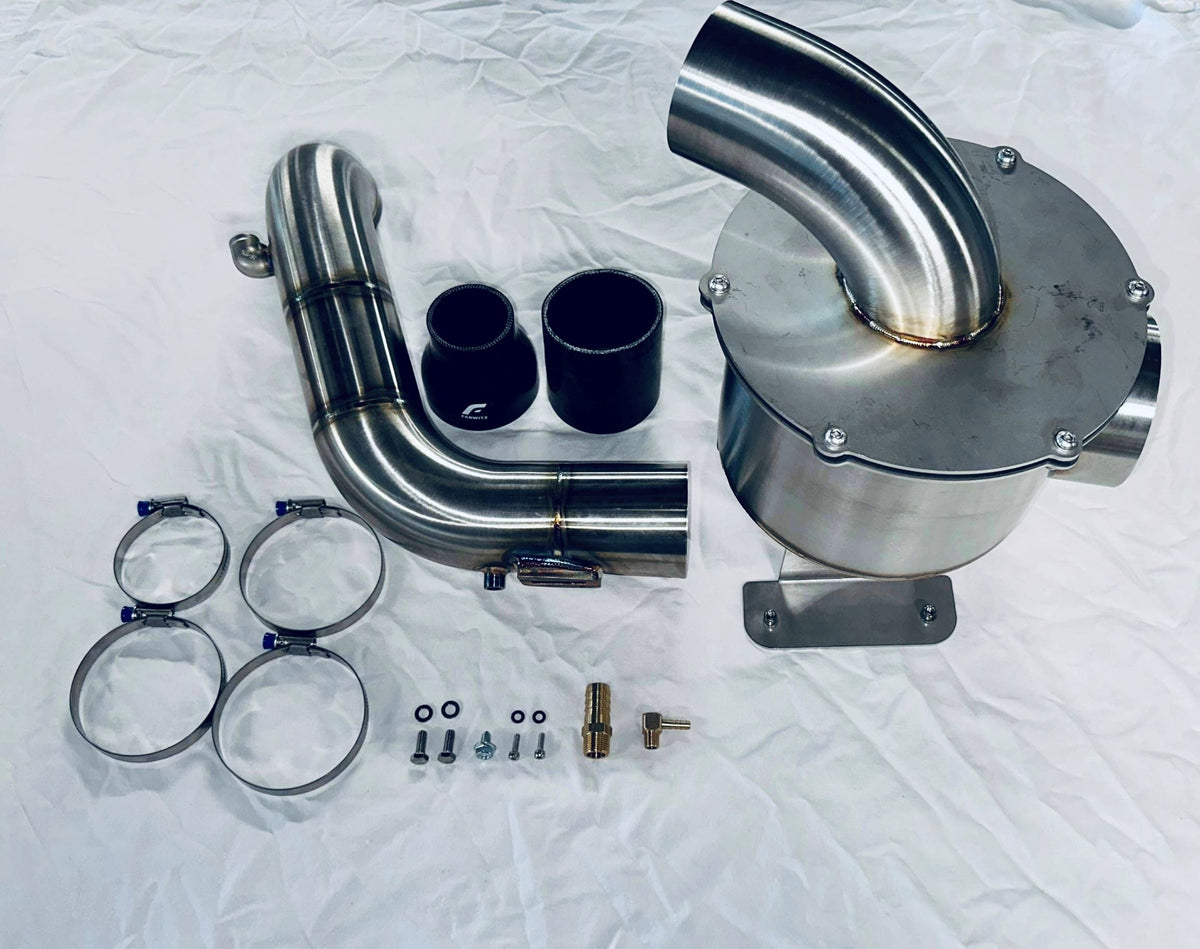

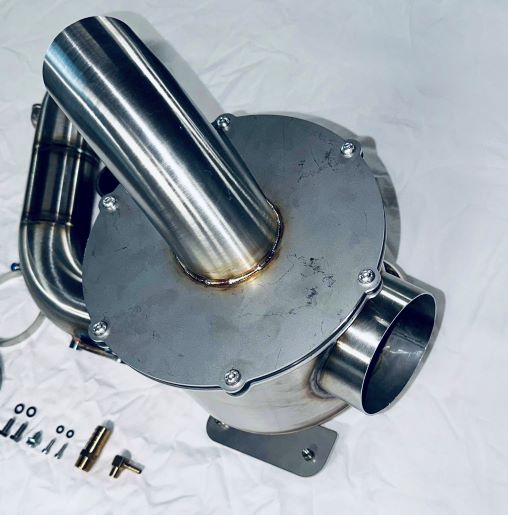

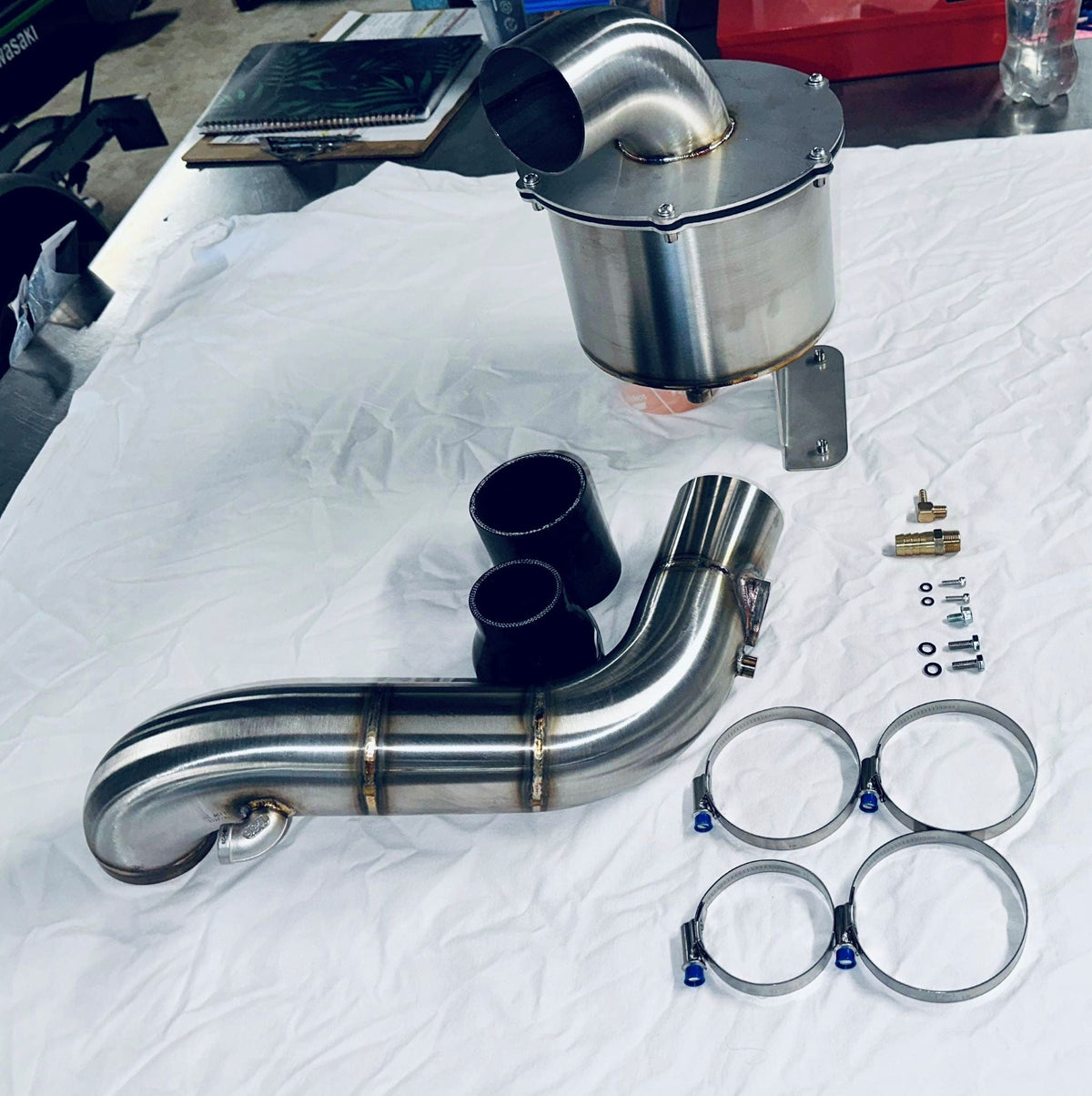

This is our Entry Level Airbox/Intake kit for the GU ZD30 CRD, of stainless-steel construction
We've designed this kit, as a more budget friendly option, for those wanting to upgrade their system to stainless steel. Quality of work and materials are the same as our more Premium kits, minus the filter. This kit is available in a RAW (weld burn) finish only. Those wanting a polished or powder coated finish will need to purchase the Premium kit.
If your MAF is the shape of the ZD30 DI, you will need the kit to suit which can be found HERE
- Raw finish only showing weld burns (not polished)
- To suit 2004 (August) - 2015 (CRD) Common Rail
- Suits Factory Filter or K&N upgrade (E-9267) NOT INCLUDED
- Airbox has 4" Inlet 3" Outlet

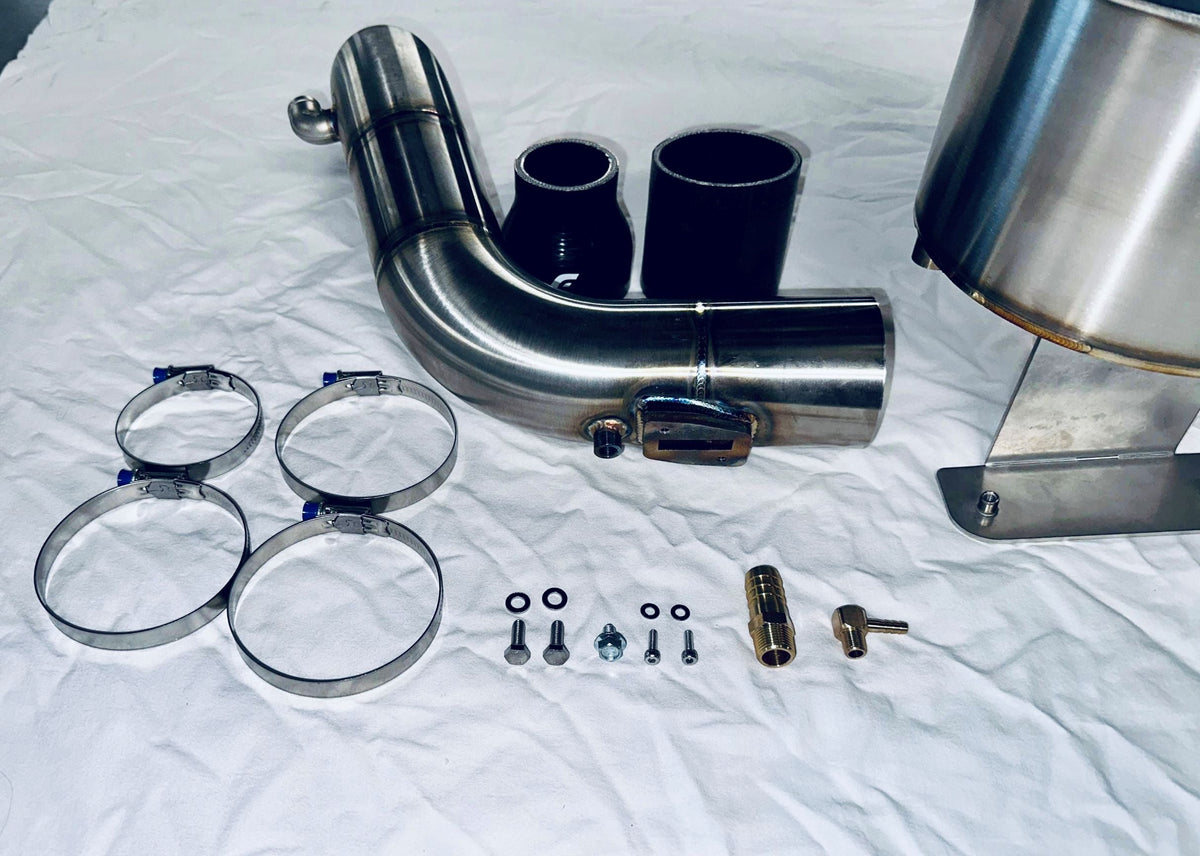

- Includes a 3" Intake Pipe with Maff housing (Rectangle) *refer to photos of MAF or contact us if unsure*
- Includes all hardware to fit
- Built in water drain

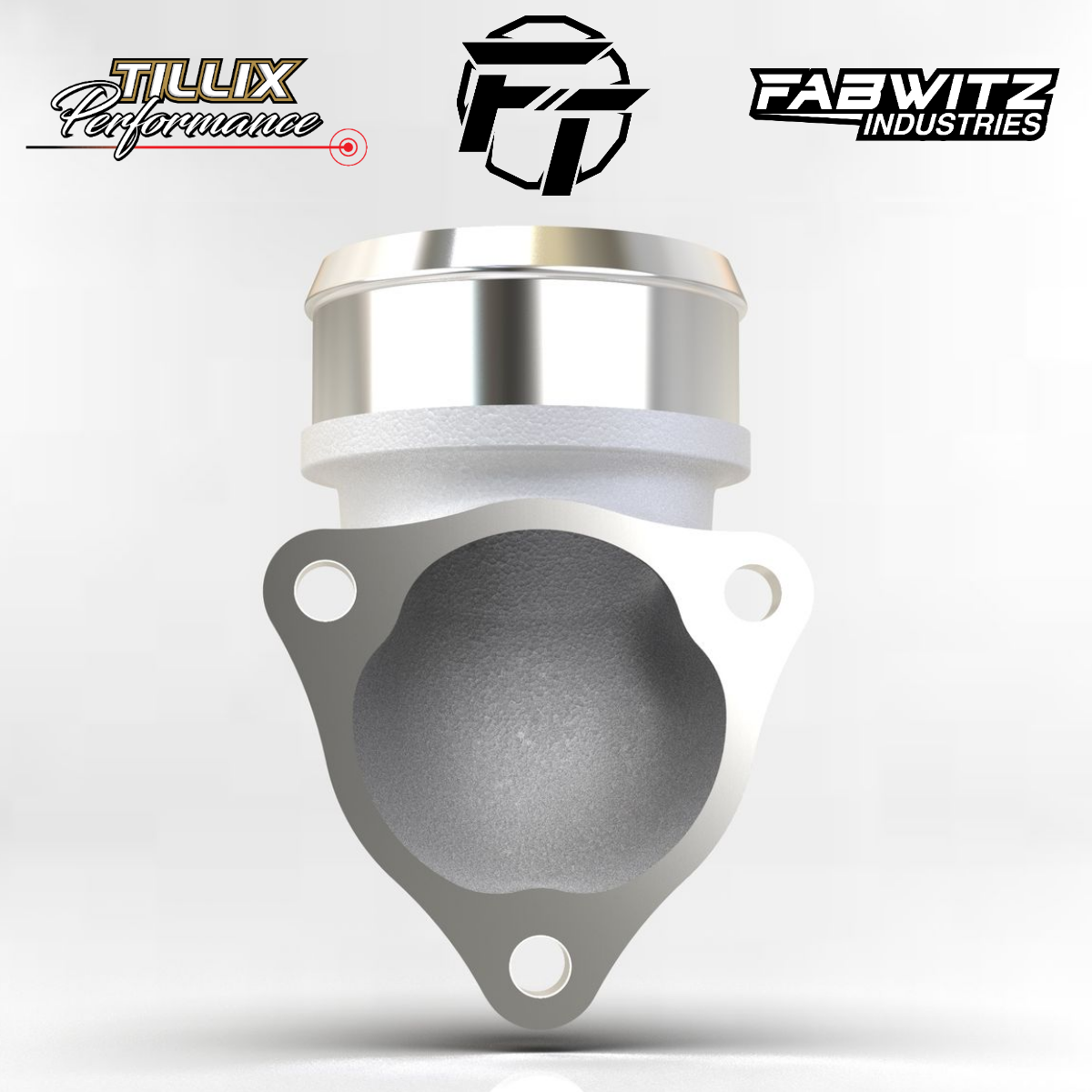

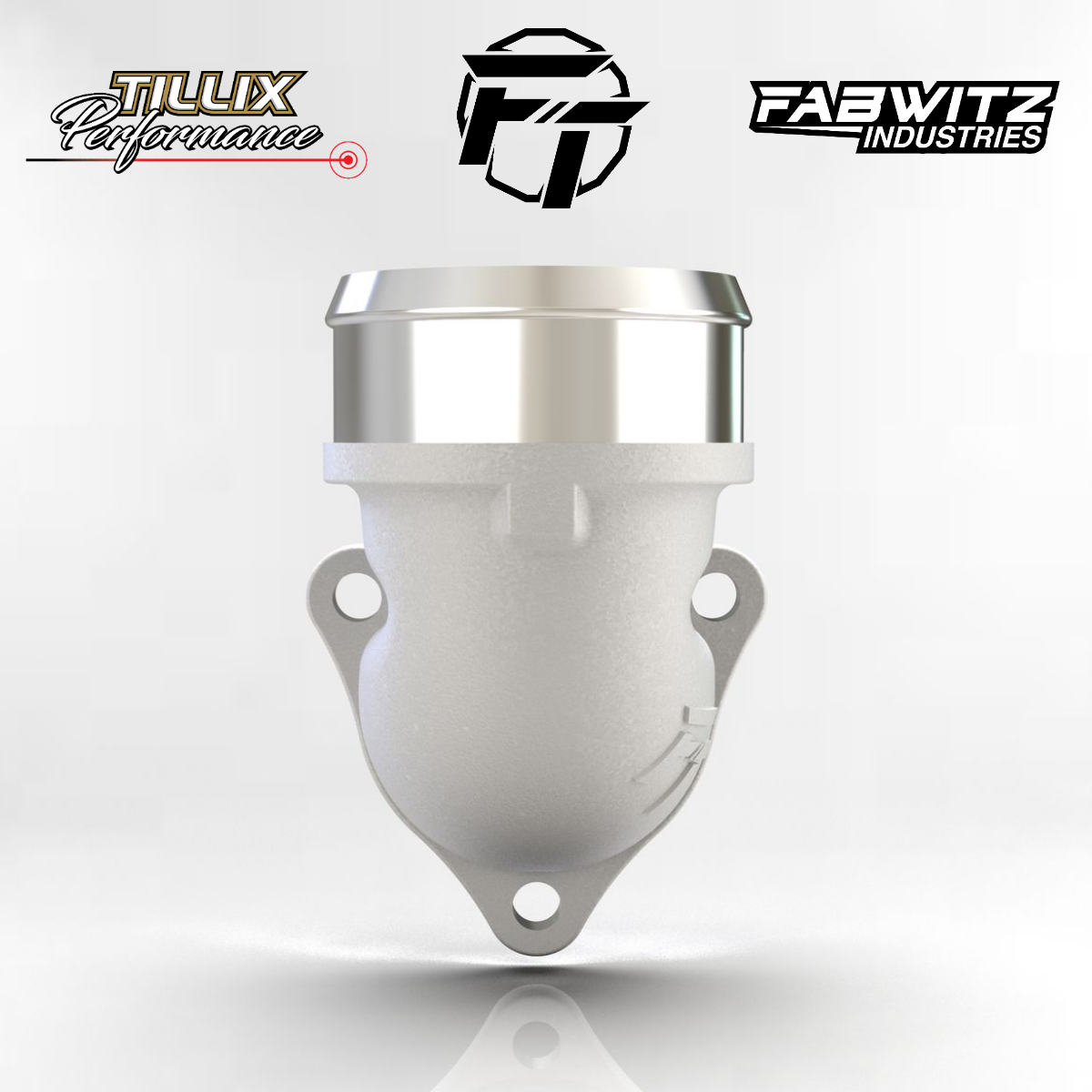

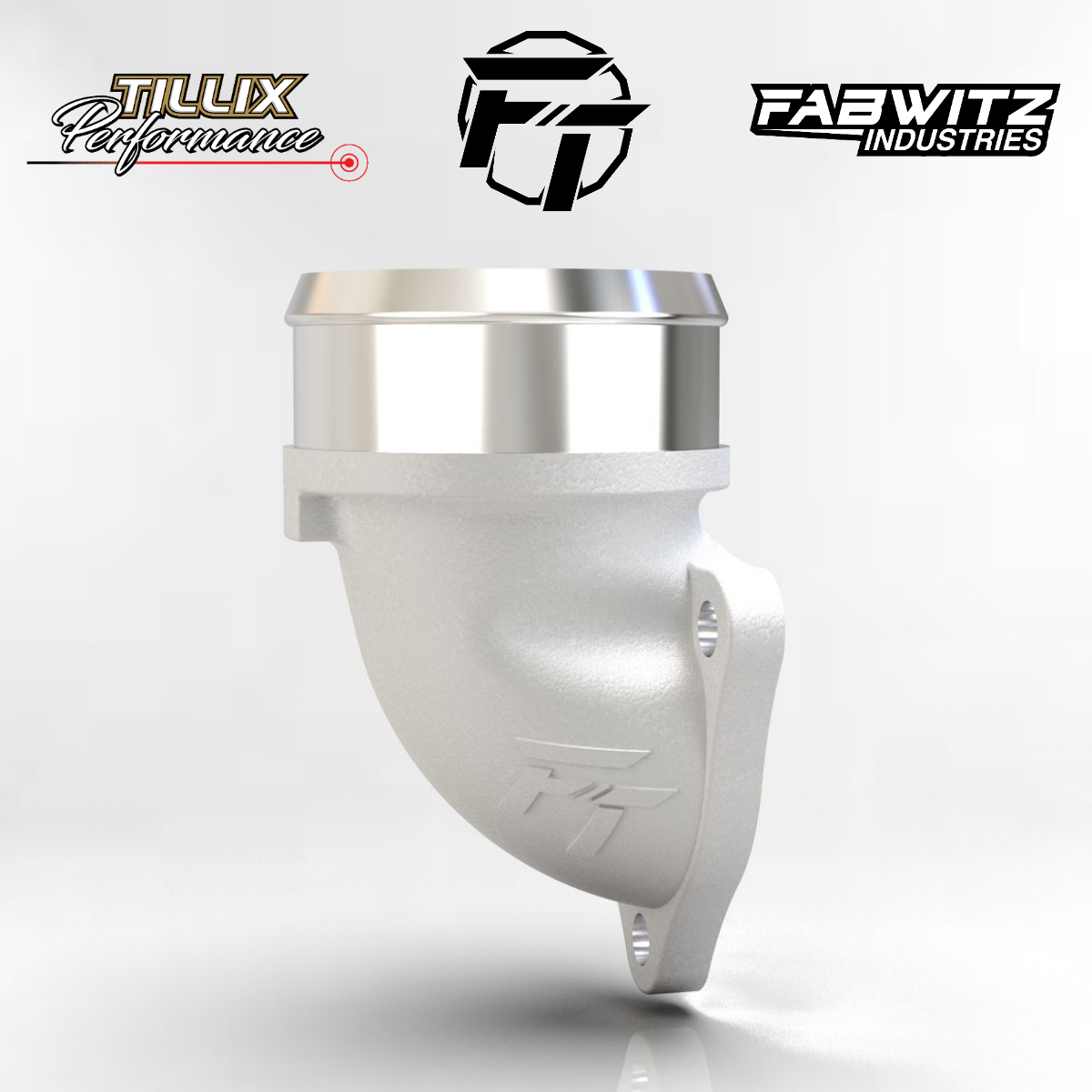

- 3" Turbo Inlet - is an optional add-on
- Direct bolt in upgrade with airbox picking up all factory mounts
- No tuning required
*Can use existing joiner from most aftermarket snorkels to connect with airbox, provided the joiner you have is 4" or you can purchase the joiner as an add-on (+$60)
**Designed to suit Fabwitz snorkel and most Aftermarket snorkels on the market that have a 4" joiner already or the joiner can be purchased as an additional add-on. For those with Factory or other plastic snorkels, you will need to source a joiner to connect your snorkel to our airbox as no joiner is supplied.
